H-BEAM

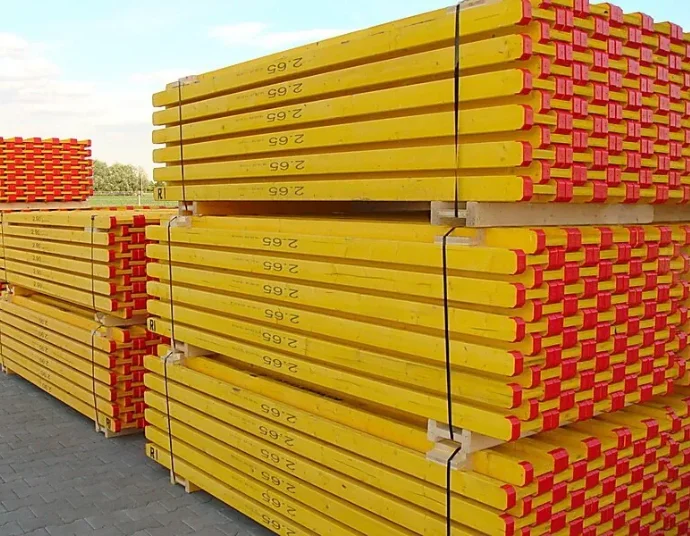

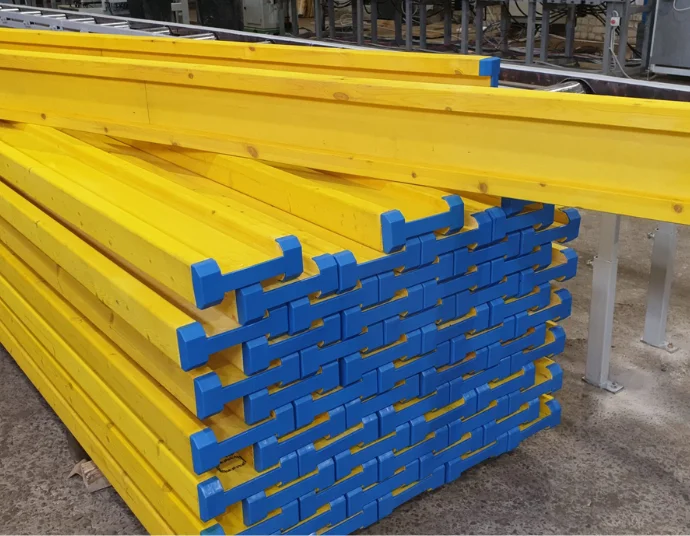

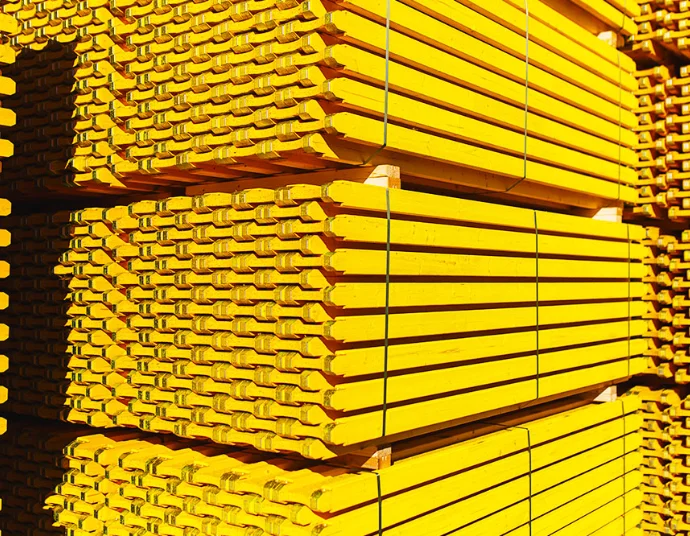

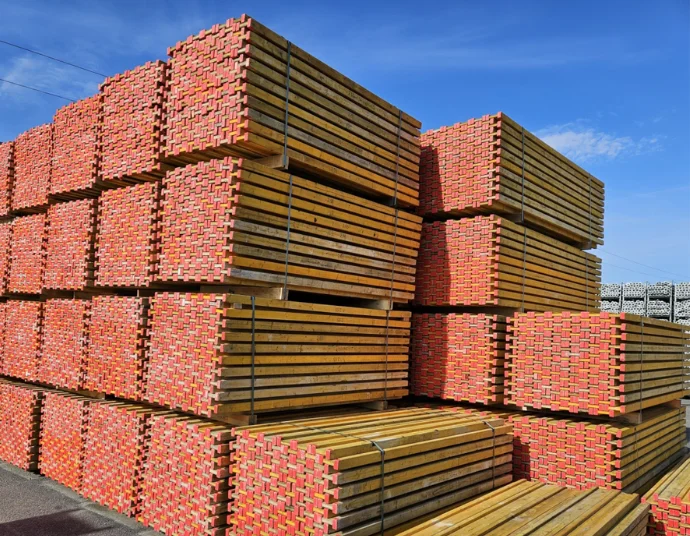

The H-Beam is an innovative solution introduced to streamline construction processes, specifically addressing the challenges associated with timber procurement. At Renaissance, our H-Beams are designed and manufactured to meet the highest international standards, adhering to rigorous quality control and assurance protocols. This ensures their reliability in withstanding a wide range of design loads during various construction activities.

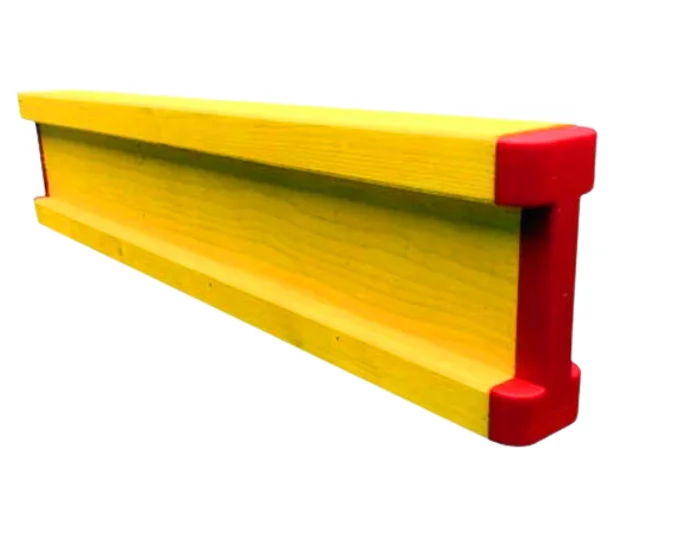

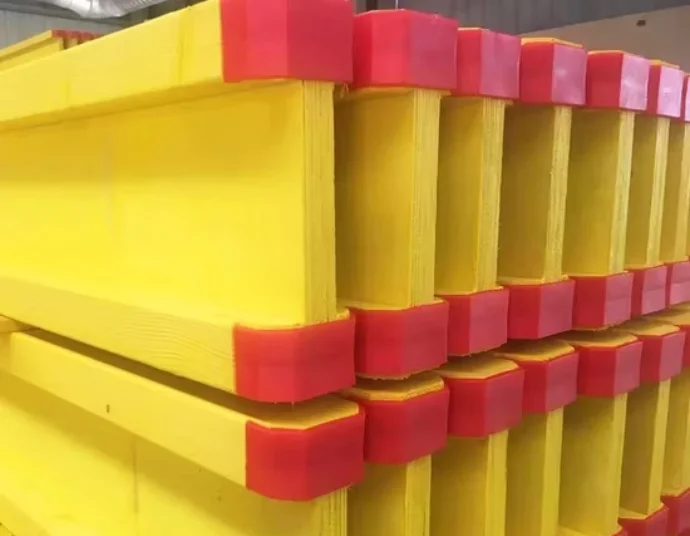

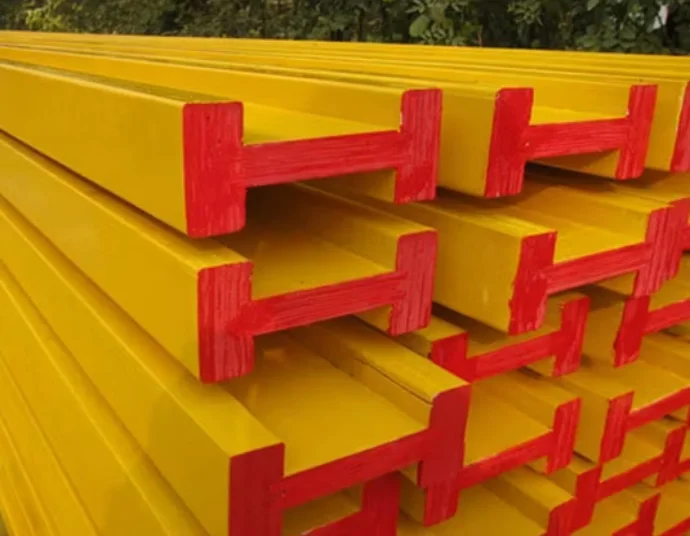

The web of the H-Beam is composed of structural plywood, while the flange sections are crafted from well-seasoned spruce wood, enhancing the strength and durability of the Timber H-Beam.

Our H-Beams utilize advanced wedge technology in the hot processing of the flange and web, resulting in a versatile and robust product. This superior design gives the H-Beam remarkable durability and load-carrying capacity, making it an ideal choice across multiple construction applications.

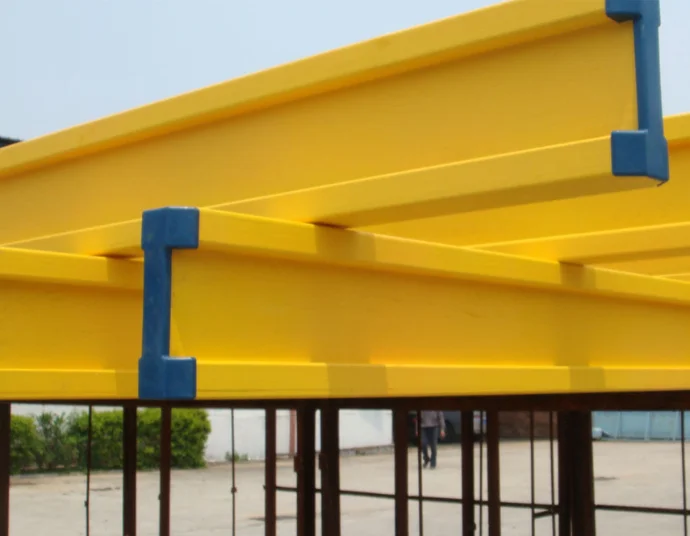

Versatile Applications:
Column Box
Formwork
Circular Columns
Wall Shuttering
Beam Span Base Support
And more

Available Sizes:

Beam Height (mm): 120
Flange Width (mm): 65
Flange Depth (mm): 35
Web Thickness (mm): 18
Available Lengths (cm): 120, 240, 300, 360, 400
BH-12 Beam – Specifications

Technical Details:

Weight per running meter: 2.80 kg
Admissible moment of Bending M (KN.M): 2.00
Admissible moment of Sheer Force Q (KN): 3.25
Admissible moment of EI Value (KN.M^2): 101.70
H-16 Beam – Specifications

Dimensions:

Beam Height (mm): 160
Flange Width (mm): 65
Flange Depth (mm): 35
Web Thickness (mm): 25
Available Lengths (cm): 120, 240, 300, 360, 400

Technical Details:

Weight per running meter: 3.50 kg
Admissible moment of Bending M (KN.M): 3.00
Admissible moment of Sheer Force Q (KN): 6.00
Admissible moment of EI Value (KN.M^2): 176.13
H-20 Beam – Specifications

Dimensions:

Beam Height (mm): 200
Flange Width (mm): 80
Flange Depth (mm): 38
Web Thickness (mm): 25
Available Lengths (cm): 120, 240, 300, 360, 400

Technical Details:

Weight per running meter: 4.50 kg
Admissible moment of Bending M (KN.M): 5.00
Admissible moment of Sheer Force Q (KN): 11.00
Admissible moment of EI Value (KN.M^2): 375.72
